160i FAP & 170i FRP
Specialty Doors

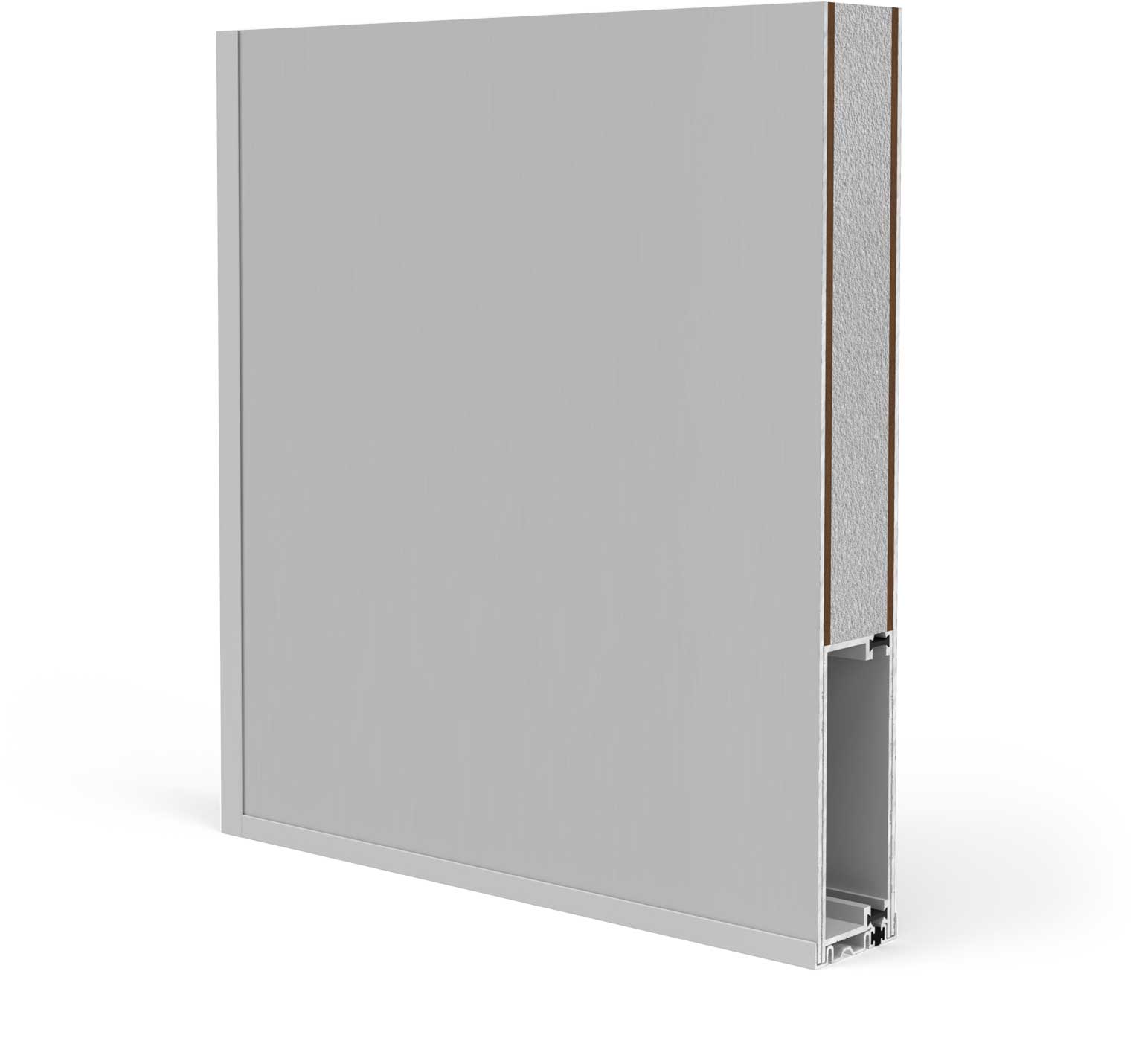

160i
Flush Aluminum Panel (FAP)
2 3/8” Door Thickness
Smooth Aluminum Finish
170i
Fiber Reinforced Polymer (FRP)
2 3/8” Door Thickness
Pebble Embossed Finish
Flush Aluminum Panel (FAP)
2 3/8” Door Thickness
Smooth Aluminum Finish
Fiber Reinforced Polymer (FRP)
2 3/8” Door Thickness
Pebble Embossed Finish

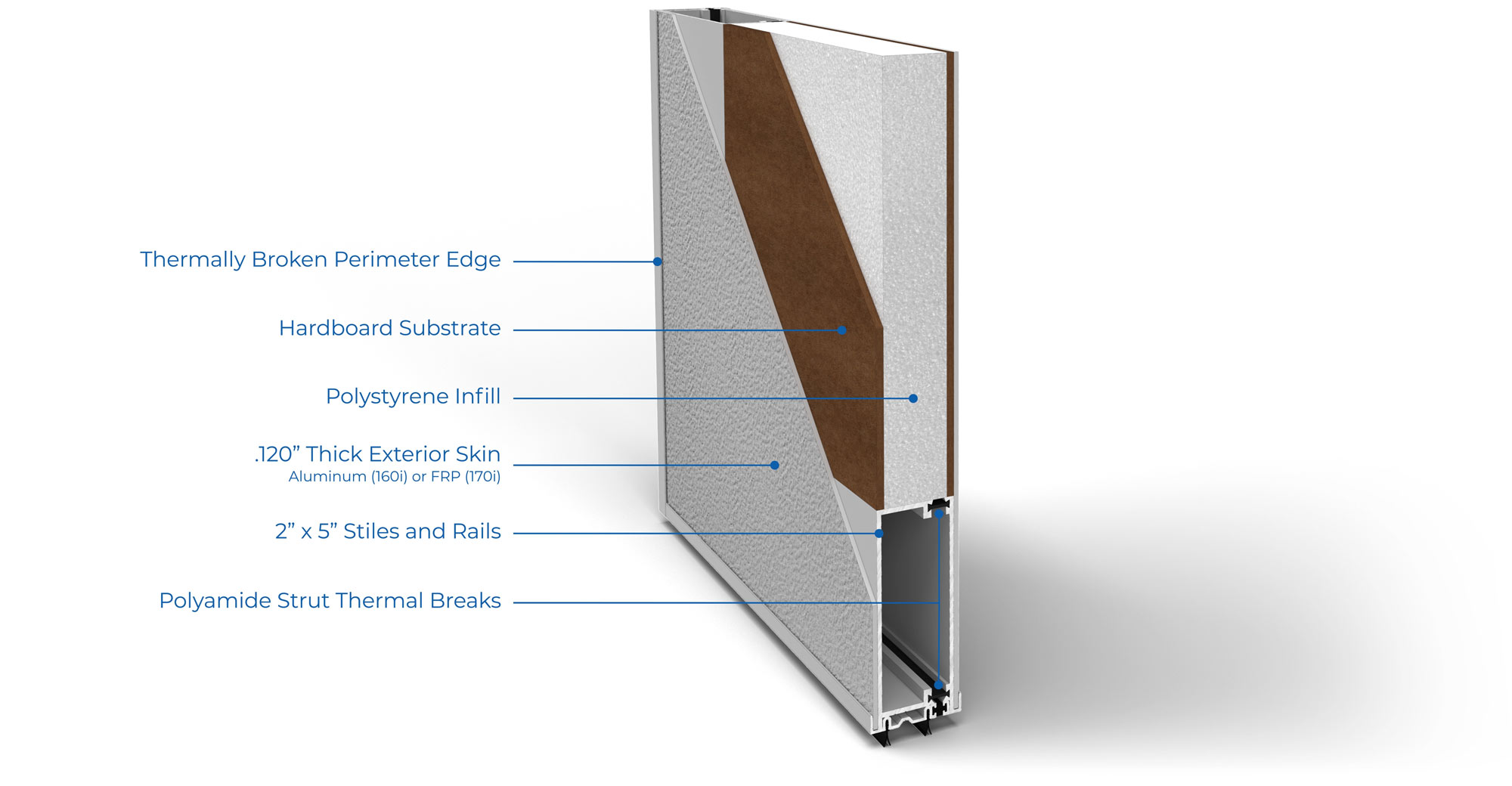

Manko’s new 160i flush aluminum panel and 170i fiber reinforced polymer, heavy duty doors are manufactured with thermally broken stiles and rails. The 160i FAP door has a sleek look with aluminum skin on the outer layer, while the 170i FRP door has a highly durable fiber reinforced polymer sheet with pebble embossed finish bonded to the interior core components. Both doors are constructed using a dense expanded polystyrene foam core and tempered hardboard backing for added insulation and durability. Lastly, the perimeter of the doors are capped using a thermally broken extrusion to provide added thermal efficiency. The FAP and FRP doors are able to accommodate a wide range of hardware options and come with multiple standard configurations of glass insert lite kits for ¼" and 1” glazing infill.
160i FAP Product Features
- 2 3/8” Door Thickness
- Polyamide Thermal Strut for Improved Thermal Efficiency
- 1/8” Tempered Hardboard
- 2” Thick Expanded Polystyrene Core
- Shear Block Corner Construction
- Smooth Exterior Aluminum Skin
- Pre-Glazed Glass Inserts
- 1” Glazing Infill
- Full Range of Anodized Finishes
- Full Range of AAMA 2605 Painted Finishes
- Wide Range of Hardware
- Custom Configurations with Standard Details
170i FRP Product Features
- 2 3/8” Door Thickness
- Polyamide Thermal Strut for Improved Thermal Efficiency
- 1/8” Tempered Hardboard
- 2” Thick Expanded Polystyrene Core
- Shear Block Corner Construction
- Highly Durable FRP Skin
- Pre-Glazed Glass Inserts
- Pebble Embossed Finish
- Dark Bronze & Gray* Finishes
- Wide Range of Hardware
- Custom Configurations with Standard Details
Standard Lite Kit Options
