175 Series
Interior Mall Slider

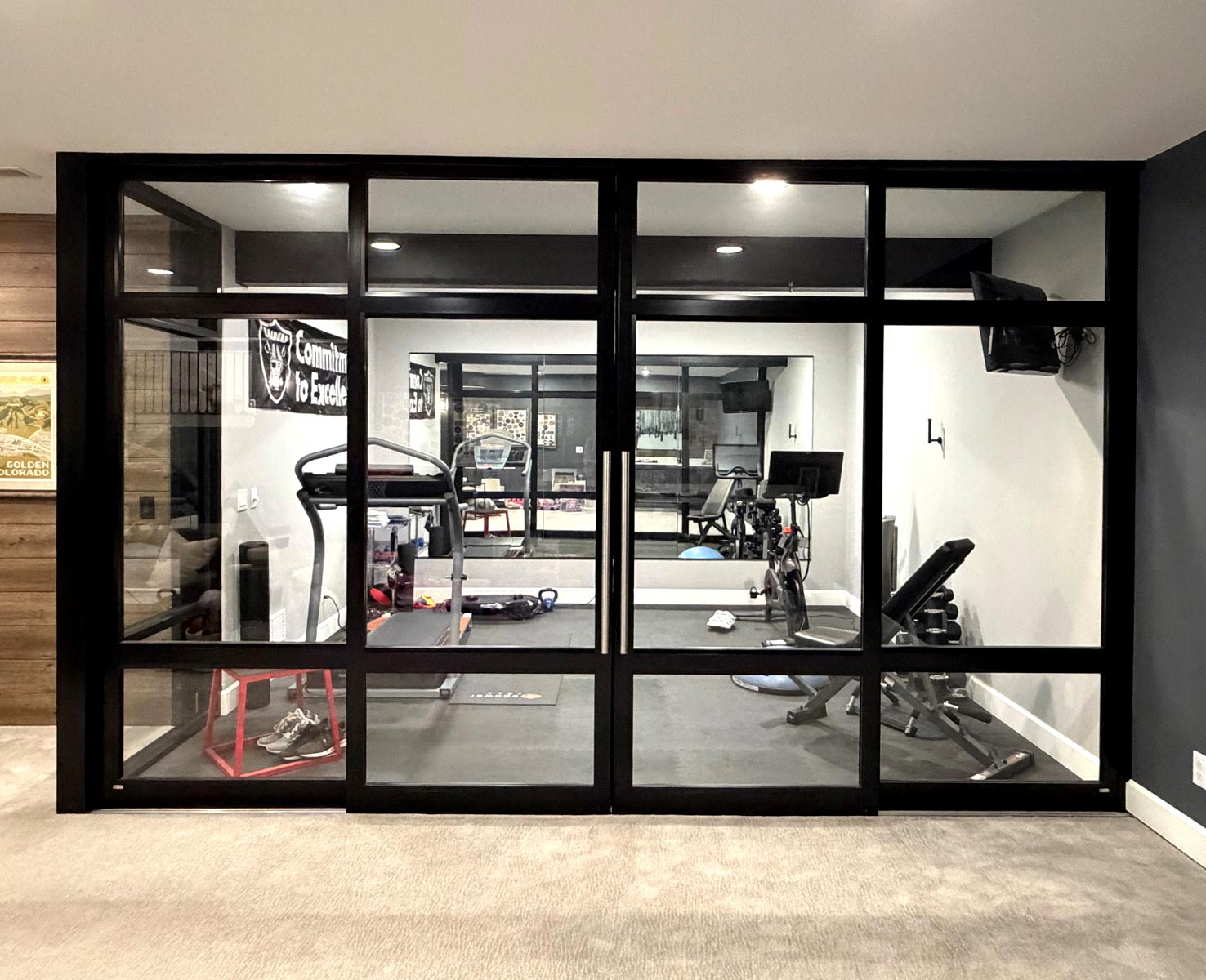

Designed for interior pass-through access, the narrow stile panels slide horizontally and can be recessed into finished walls, clearing an entire opening. The 175 series mall slider configuration allows for multiple panels sliding and stacking to one or opposite sides by way of separate head tracks and ADA compliant sill tracks. Each door panel is supported by a center pivot spring loaded tendon wheel assembly, and two self-contained stainless steel ball bearing rollers. Ideal for interior retail stores and interior room dividers.
Product Features
- Interior Sliding Panels
- 2" Narrow Stile Profile
- 1 3/4" Door Leaf Thickness
- 2 1/4" Head & Jamb Channels
- 3-Way Corner Construction
- Center Pivot Spring Loaded Tandem Wheels
- Stainless Steel Rollers
- ADA Compliant Sill Track
- 3/16" - 1" Factory Glazed
- Hardware Supports up to 250 lbs per leaf
- Anodized and AAMA 2605 Paint Finishes
