2400i Series
Bi-Fold Door

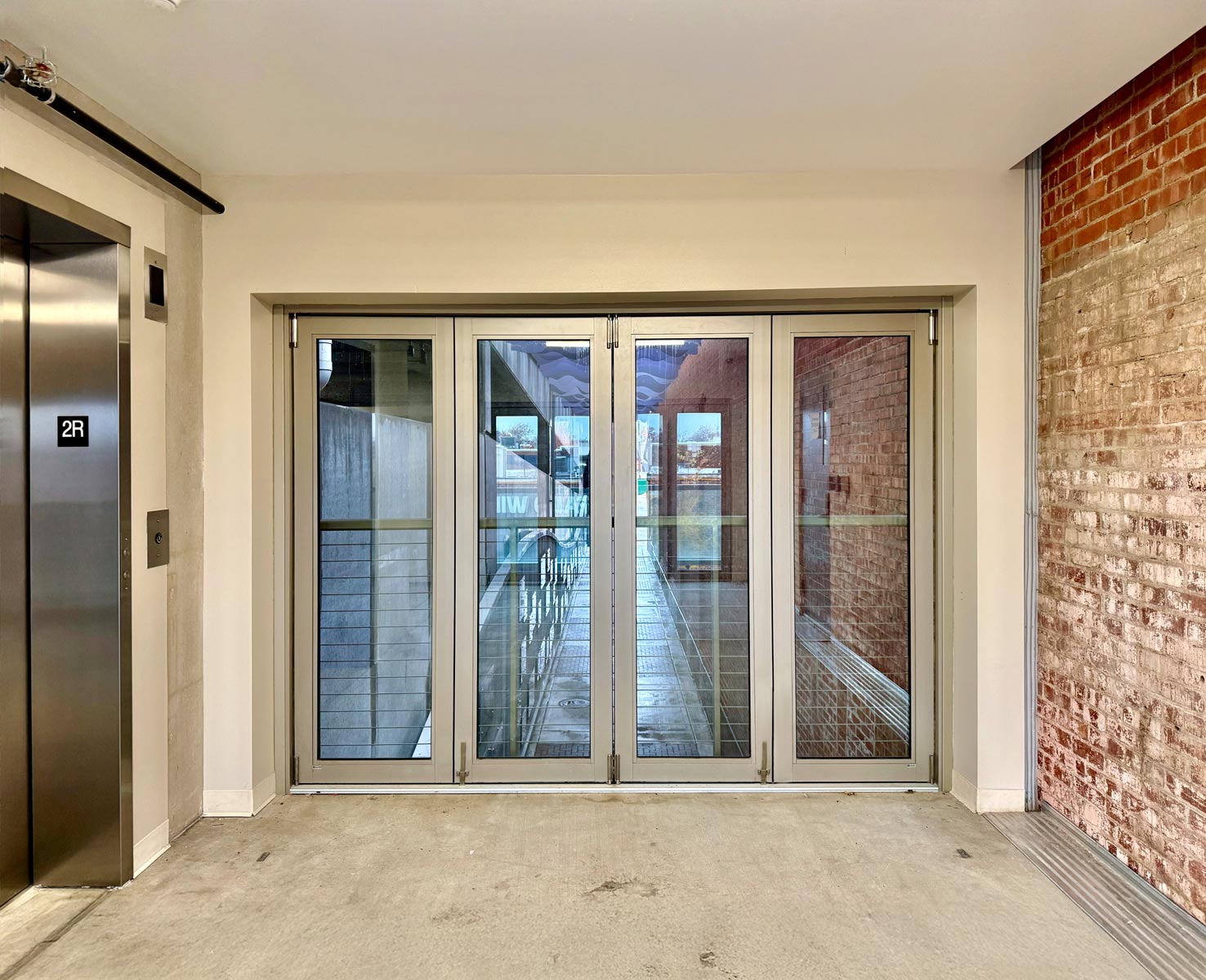

Manko's 2400i series thermally broken bi-fold door can create a dynamic space, perfect for a lounge, restaurant or residence to take full take advantage of exterior desirable conditions. The top hung, outswing only, configuration allows for up to 10 operable panels stacking at either side of the opening, and an optional swing door can be incorporated at the jamb location. The doors and frame incorporate a structural polyamide thermal barrier, ensuring maximum performance. Operation is smooth and secure, facilitated by concealed pivots, hinges with integral pull handles, and robust single-point drop bolt locking hardware at both the head and sill. Structural framing considerations will need to be addressed for the top hung system.
Design and structural considerations will need to be addressed for the top hung system.
Design and structural considerations will need to be addressed for the top hung system.
Product Features
Horizontal Stacking, Outswing Bi-Fold Door
4 1/8” Overall Frame Depth
2” Door Leaf Depth
3 3/4" Vertical Stile
Polyamide Thermal Strut
Factory Glazed - Standard 1” Infill
Internal Glass Muntins Available
Up to 10 Operable Panels Stacking at Either Side
Easily Incorporated Swing Door at Either Jamb
Panel Max Size of 32” x 108” or Approximately 180 lbs.
Structural Header Required
Anodized and AAMA 2605 Paint Finishes
Dual Finish Available
Horizontal Stacking, Outswing Bi-Fold Door
4 1/8” Overall Frame Depth
2” Door Leaf Depth
3 3/4" Vertical Stile
Polyamide Thermal Strut
Factory Glazed - Standard 1” Infill
Internal Glass Muntins Available
Up to 10 Operable Panels Stacking at Either Side
Easily Incorporated Swing Door at Either Jamb
Panel Max Size of 32” x 108” or Approximately 180 lbs.
Structural Header Required
Anodized and AAMA 2605 Paint Finishes
Dual Finish Available
