135H & 150H Series
Heavy Wall Doors

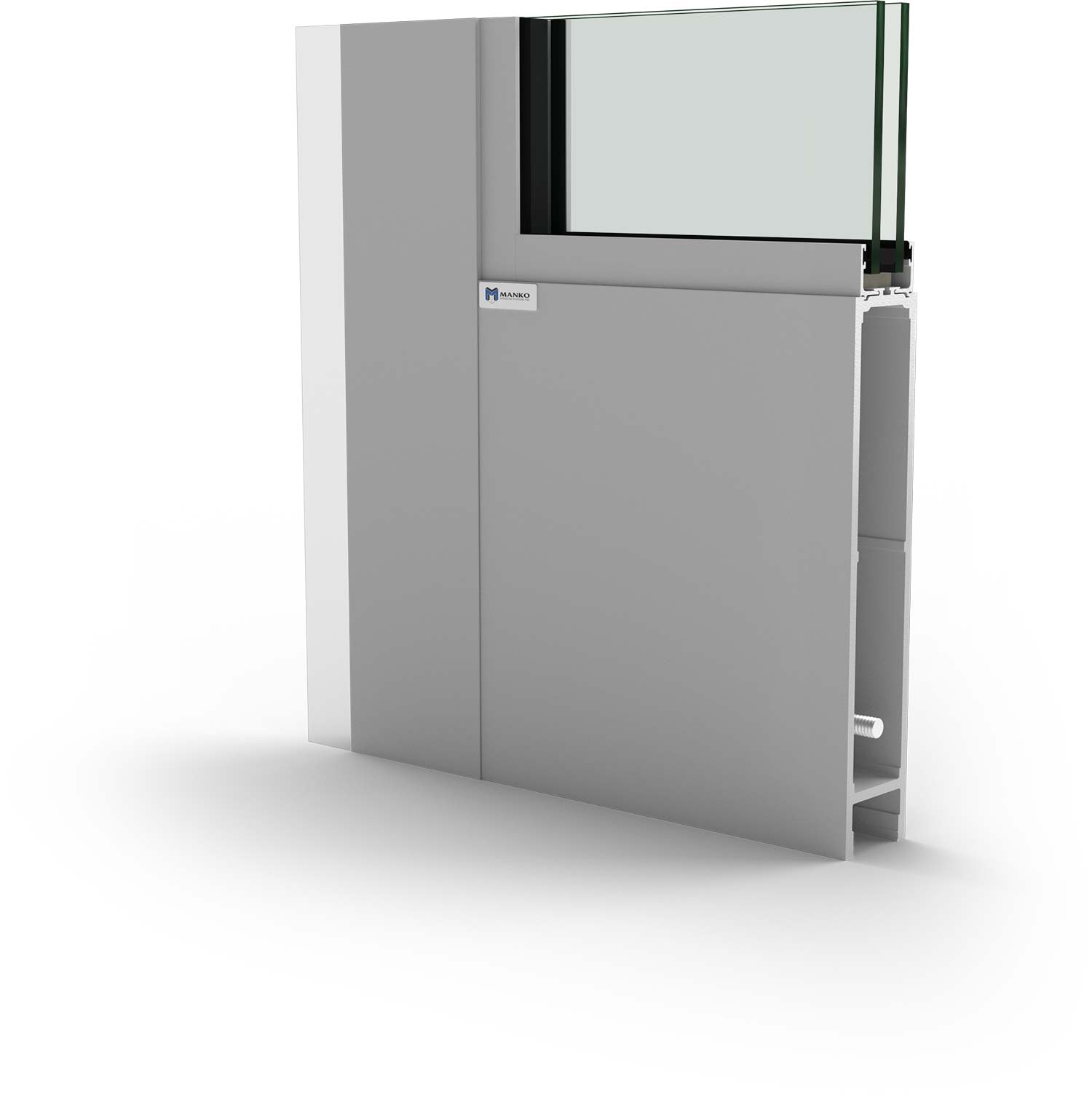

135H Series
Medium Stile Heavy Wall Door
2” Thick, 3 1/2" Stile
3/16” Wall Thickness
150H Series
Wide Stile Heavy Wall Door
2” Thick, 5” Stile
3/16” Wall Thickness
Medium Stile Heavy Wall Door
2” Thick, 3 1/2" Stile
3/16” Wall Thickness
Wide Stile Heavy Wall Door
2” Thick, 5” Stile
3/16” Wall Thickness

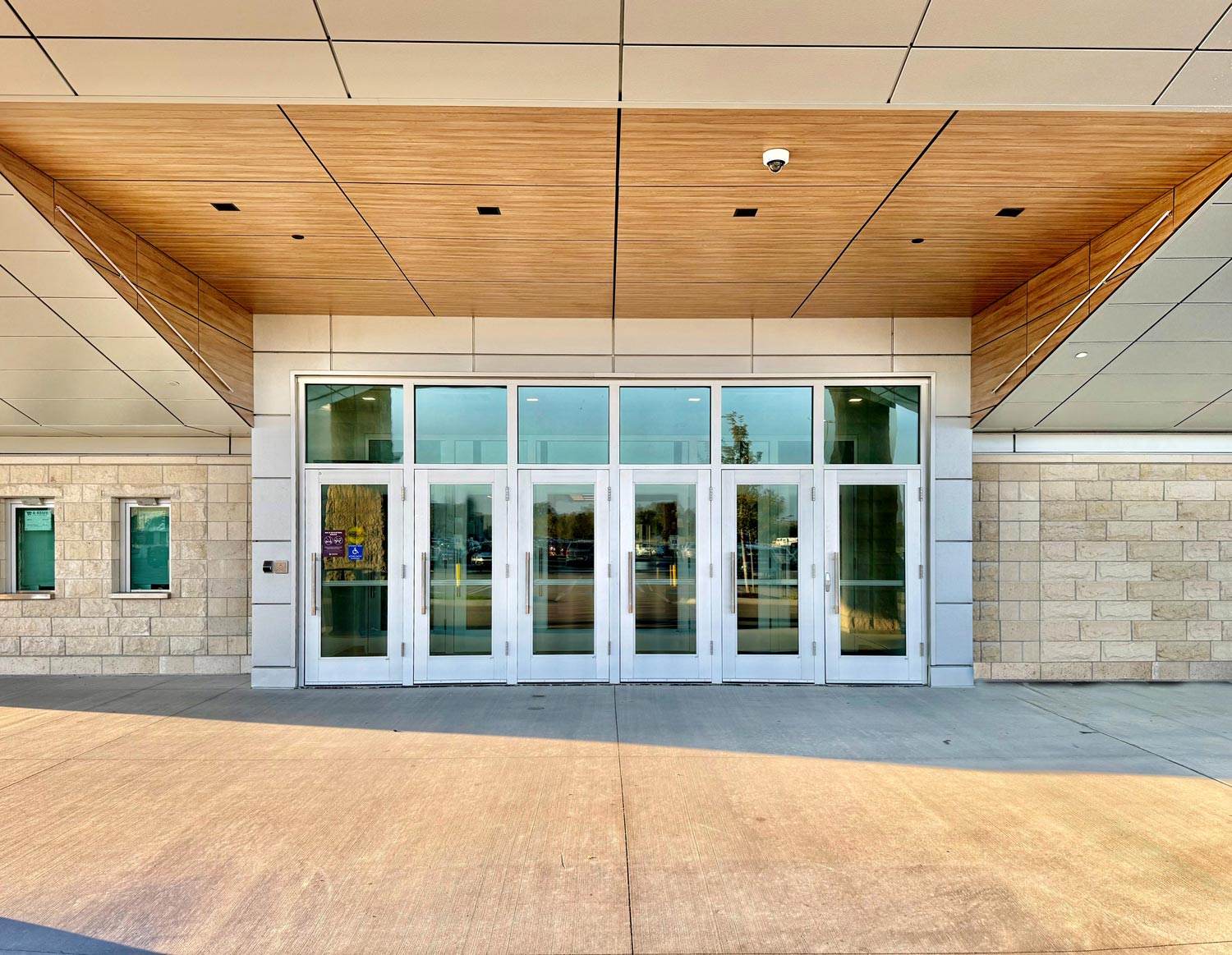

Manko’s wide variety of aluminum entrance door options include the heavy wall series. Ideal for high traffic areas, the 2” thick heavy wall series was designed to withstand a greater daily impact. These 3/16” wall doors are available in two stile widths: 3 1/2” medium stile (135H series) and 5” wide stile (150H series). Each door comes standard with a 10” bottom rail, however additional heights include 5”, 6 1/2”, and 12”. All Manko doors are fabricated utilizing a telescoping mortise and tenon joint coupled with a horizontal shear block. The joints are then further reinforced with a 3/8” steel tie rod and sleeve ensuring long lasting durability and
structural integrity. Each set of Manko pair doors come standard with double adjustable astragals and poly-pile weathering. These heavy wall doors seamlessly integrate with all of Manko’s storefront and curtain wall systems.
