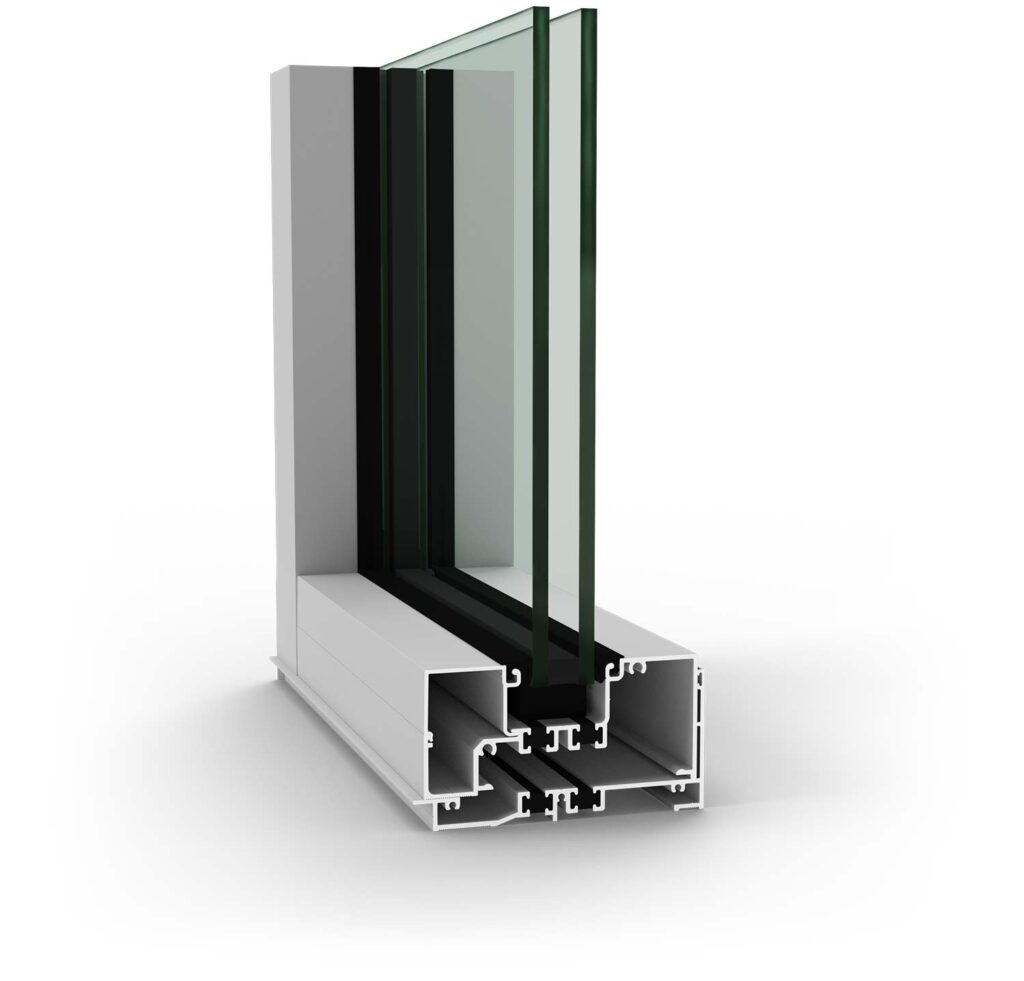

2450xpt Series
Storefront
2450xpt
2” x 4 1/2”, Center Set Glazing
Dual Pour & Debridged Thermal Breaks
0.36 System U-Value with 0.29 COG
With energy performance at the forefront of many project design conversations, Manko Window Systems has developed its 2450xpt system to meet high performance storefront needs. The 2450xpt's profile and depth fit the typical 2” x 4 1/2” storefront design; however, this center glazed system has dual pour and debridged thermal breaks to significantly improve u-values and condensation resistance. This system is well suited for low‑rise applications and punched openings, please refer to Manko’s wind load charts for structural capabilities. The 2450xpt is compliant with AAMA air and water testing and NFRC 100, 200, and 500 certifications.

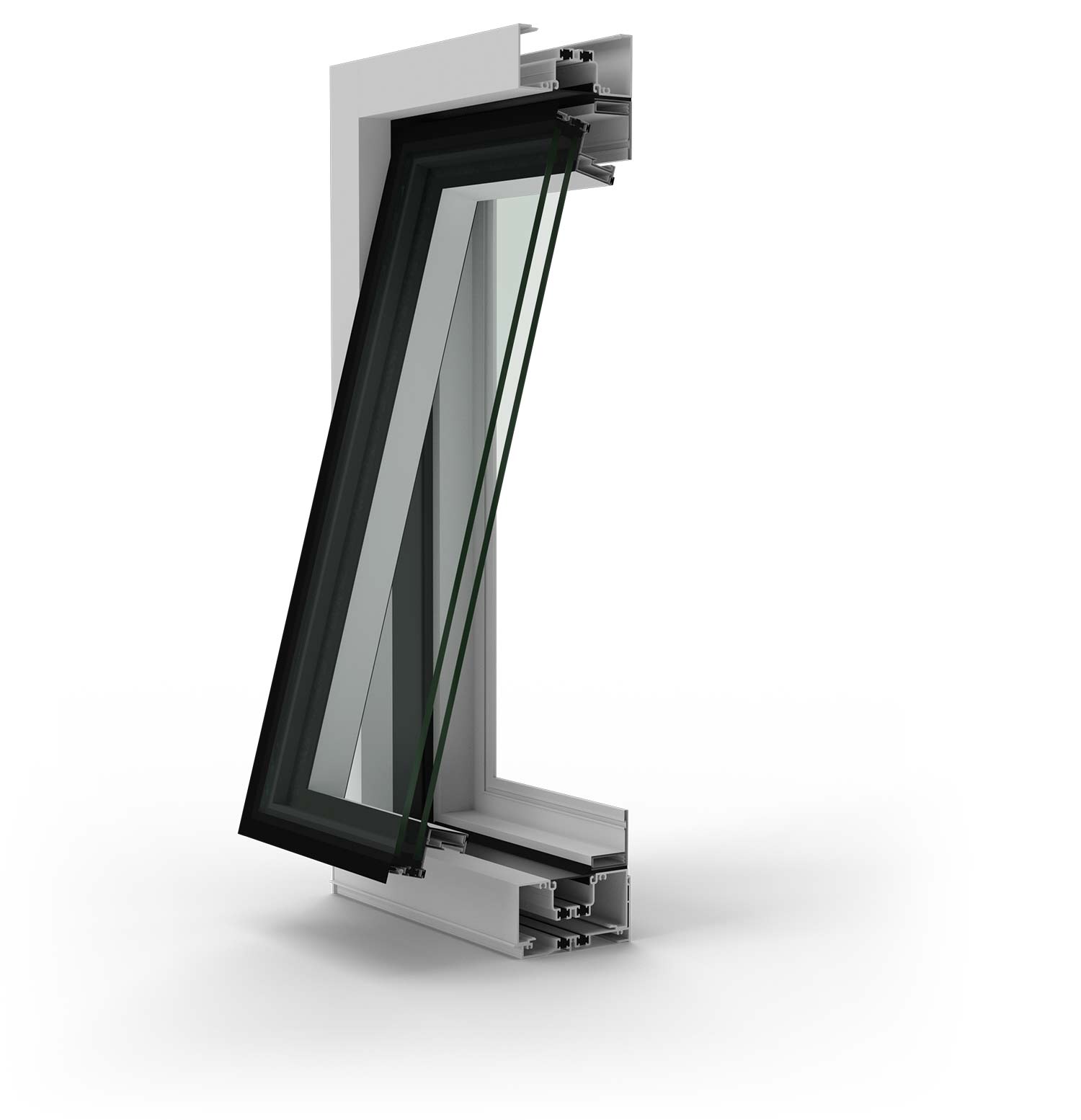

1100 Series Vent
Closed
Open
2 15/16” Frame Depth
Project Out and Casement
Zero-Sightline Window
P & D Thermal Break

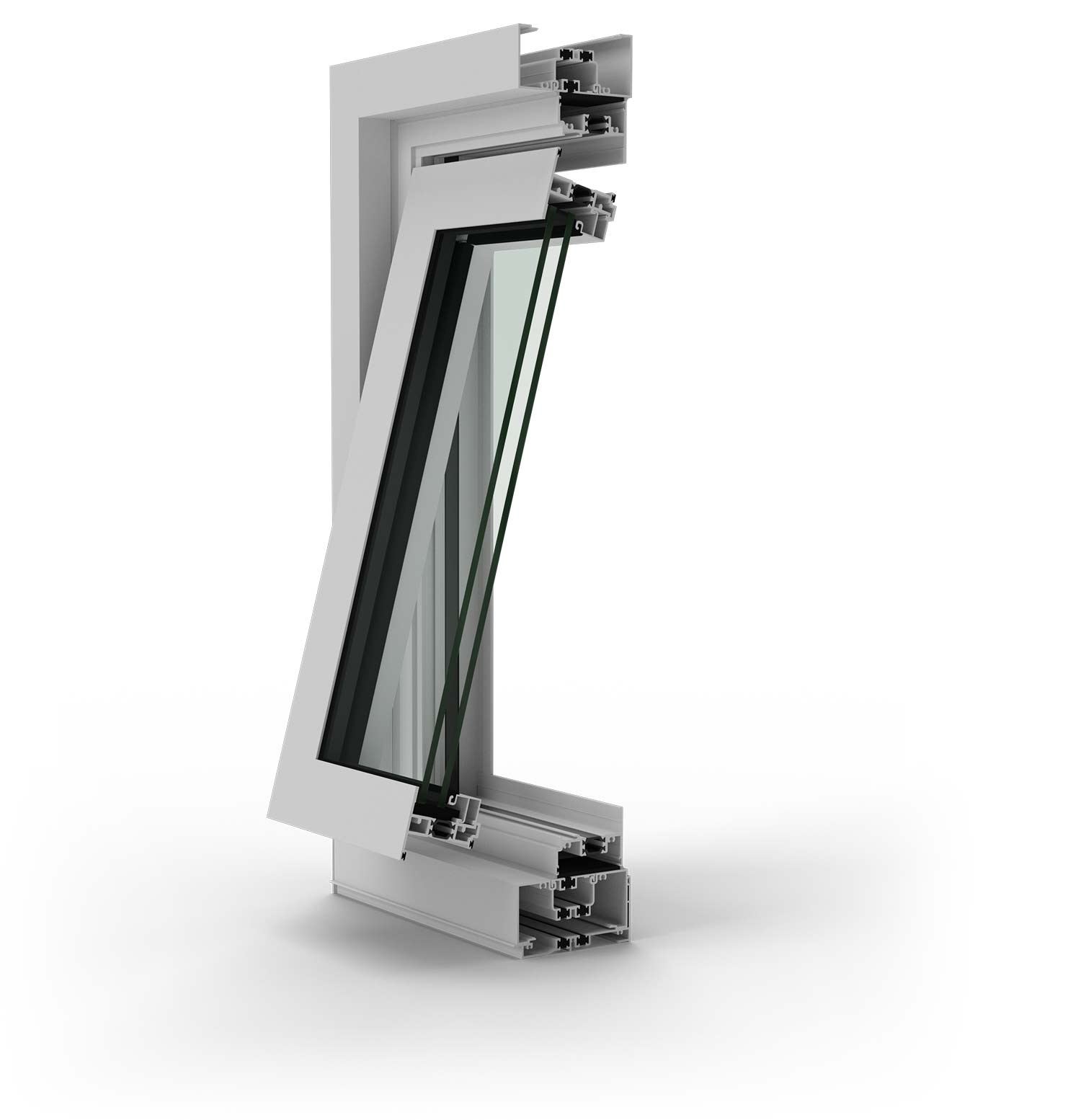

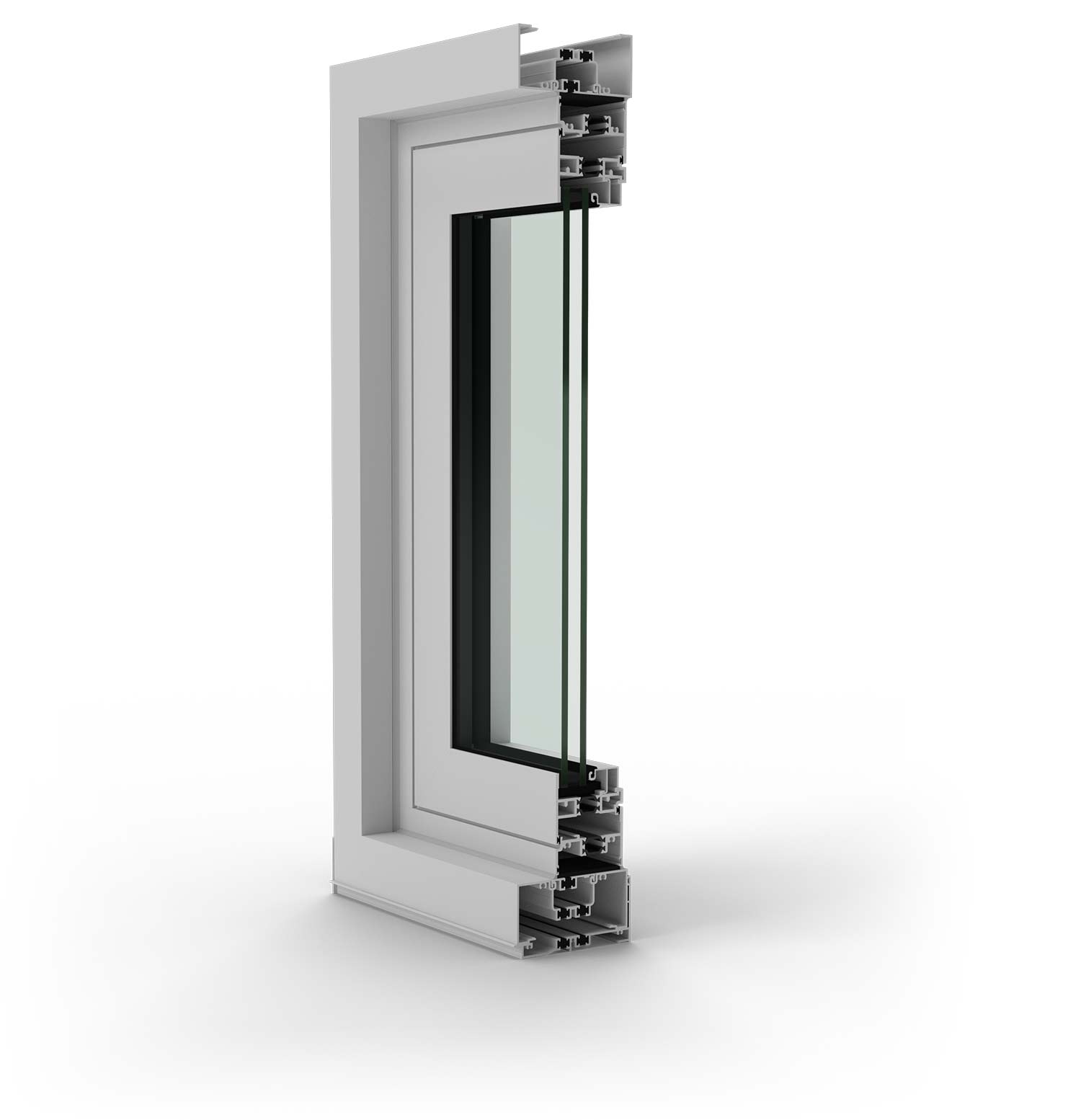

2727i Series Vent
Closed
Open
2 3/4” Frame Depth
Project Out / In and Casement
Flush Vent
Polyamide Thermal Break
