VersaShade
Sunshades
Manko’s single blade VersaShade sunshade was developed to be integrated into our curtain wall system, as well as storefront and window wall systems, with limitations. The design allows for installation in either a horizontal or vertical orientation, at multiple angles, with four standard blade depths.
Product Features
- Vertical or Horizontal Orientation
- Adjustable Orientation

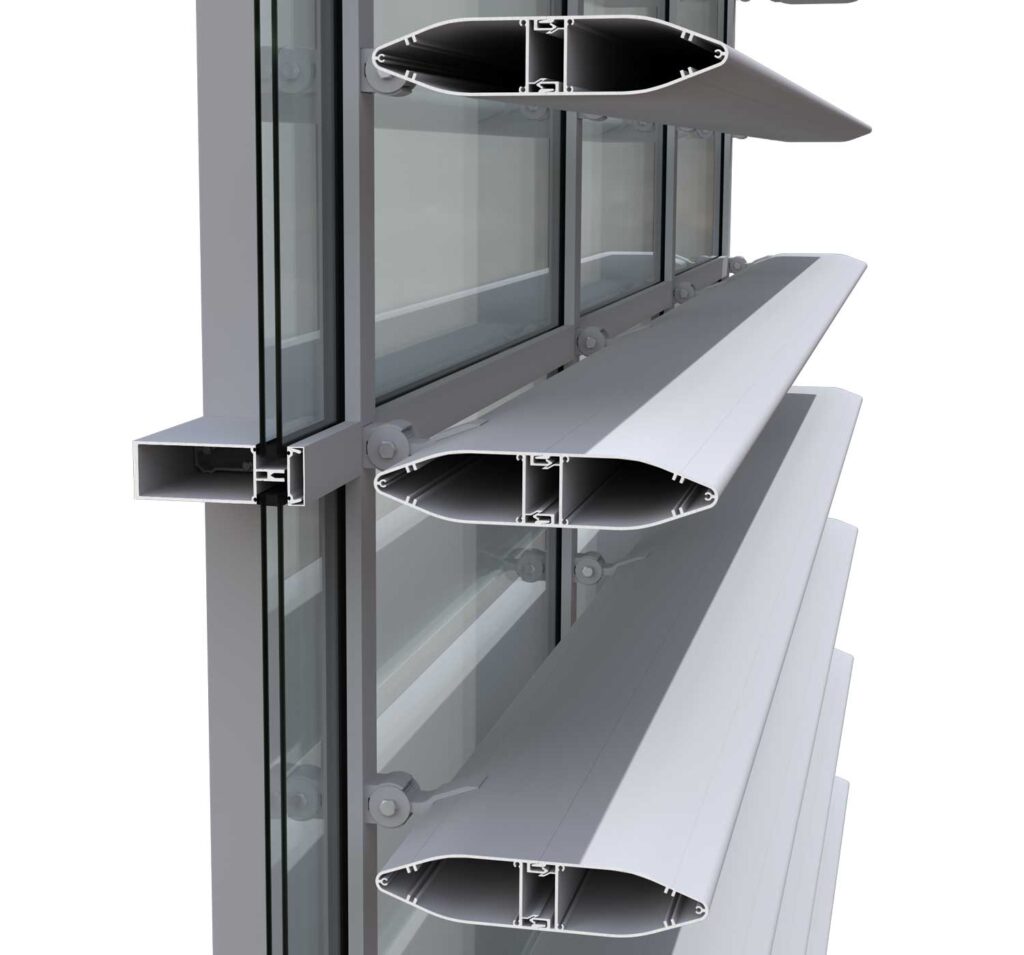

- Standard Blade Depths (8”, 10”, 12”, 14”)
- Reduces Solar Heat Gain
- Increases Daylighting
- Increases Occupant Comfort
- Contributor to LEED Credits
- Class I Anodized Finishes
- AAMA 2605 Paint Finishes
Vertical

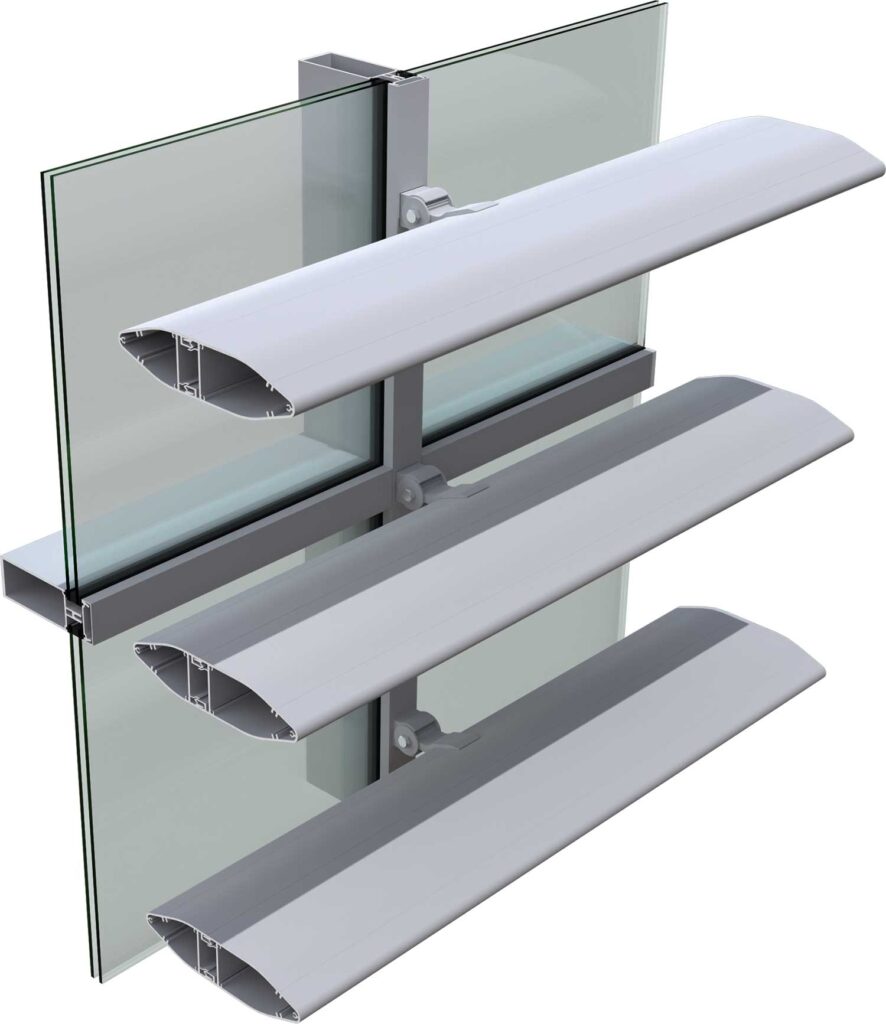

Horizontal
Blade angles can be initially set at nine
different angles from positive 40 degrees
to negative 40 degrees, in 10 degree
increments.
Applicable for both horizontal and vertical orientation.
